XRP Μετατροπέας Mini NGFF M.2 B Key SATA – Based SSD to PCI-e mSATA Adapter Card 2230 2242 2260 2280

Περιγραφή

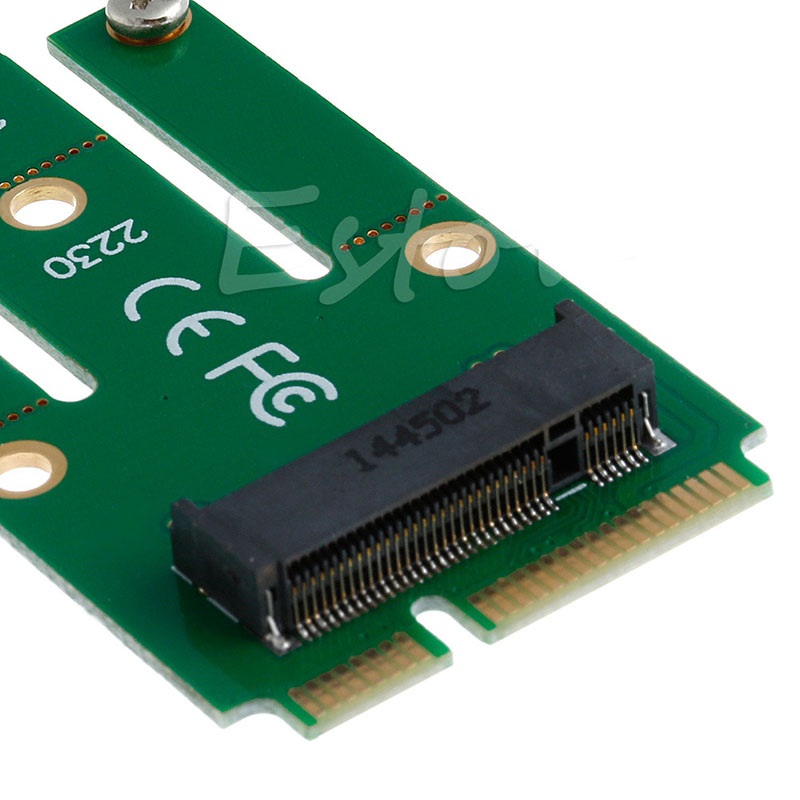

The adapter can use an ordinary MSATA interface SSD convert to M.2 NGFF interface SSD.

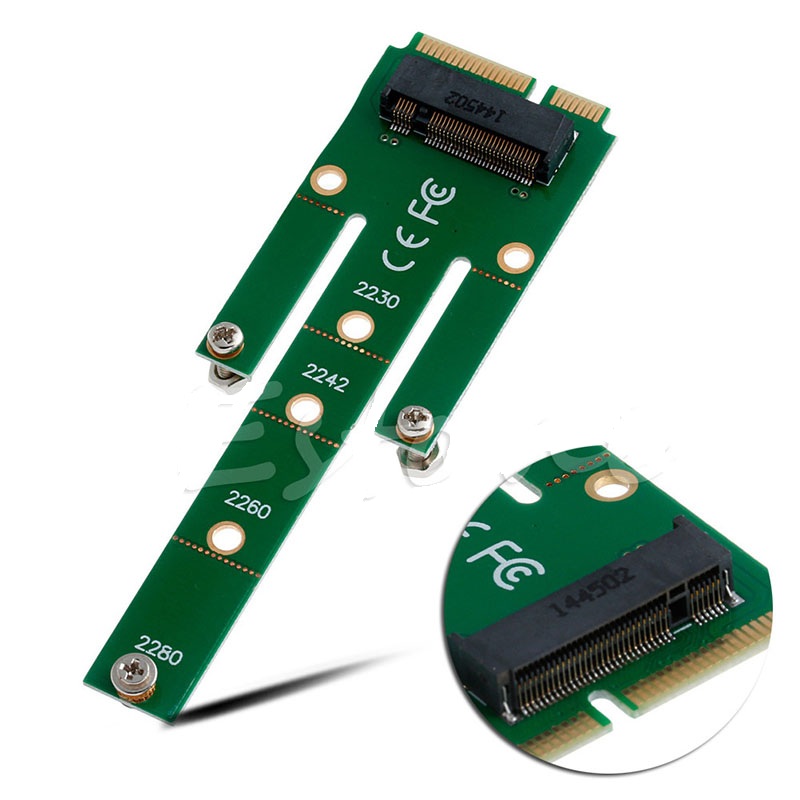

The board has four mounting holes, respectively 22 * 30 mm, 22 * 42 mm, 22 * 60 mm, 22 * 80 mm, depending on the length of the slot inside your machine, you can break positioning.

Specifications:

Connects NGFF B Key SSD to mSATA Mini PCI-E motherboard.
Compliant with PCI Express M.2 specification 1.0.
Compliant with SATA III specification.
Supports data transfer up to 6.0Gb/s.
Supports SATA-based NGFF SSD.
Supports B Key NGFF SSD.
Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
One NGFF M.2 B Key socket and one mSATA Mini PCI-E male connector available.
4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card.
4 screw holes available to fix PCB board.
Easy installation & no driver required.
No additional power required.
Support boot function.
Supports any OS, like Windows, WinCE & Linux etc.
Board Size:(L*W)9.90*6.60cm/3.89″*2.60″
Quantity:1Pc

Note:
Please note that it supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any M key SSD.
